Taylor 2354 Thermograph

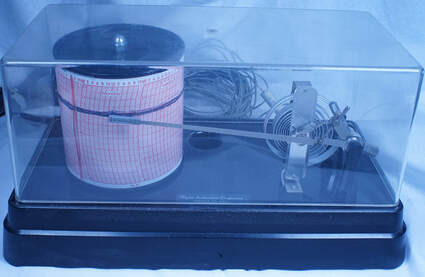

With Cover

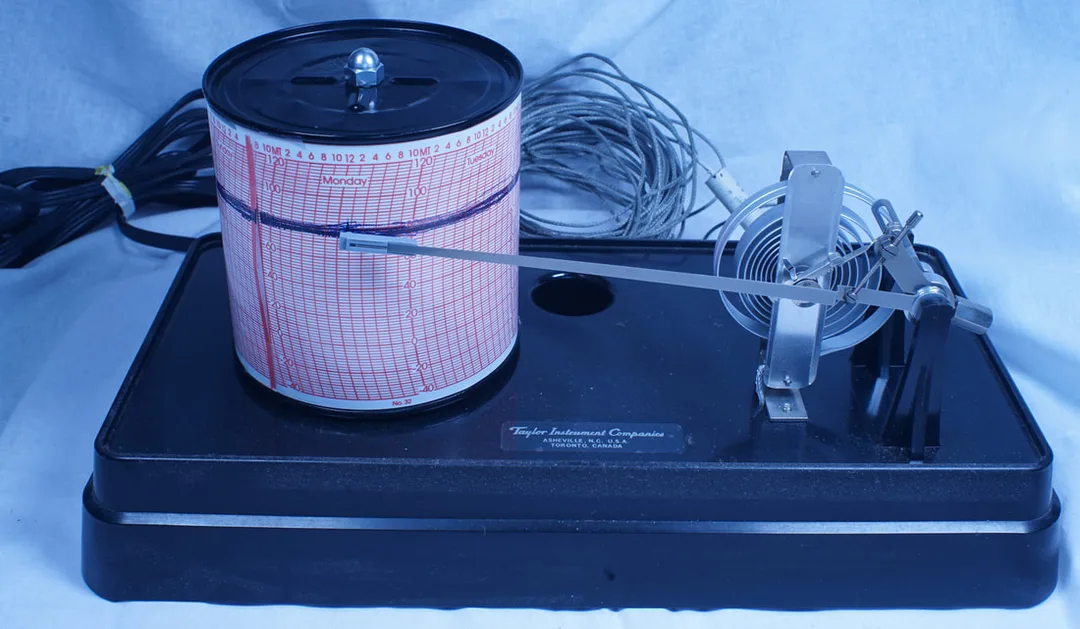

Without Cover
This Taylor Model 2354 7-day thermograph is shown in the 1964 Taylor catalog, available on this website. It was still shown in the 1972 catalog. It has a remote sensor bulb connected to the thermograph by a 40 foot flexible metal-shielded capillary tube. Some models appear to have an 8 foot capillary tube. The chart drum runs on 120 volt AC. Mine is unusual in that it still works well, a broken or kinked sensor tube is the most common mode of failure. Also motor problems are frequent, perhaps because it was designed for 110 VAC while 120 VAC is now standard in the US?
JPEG images of the Taylor 2354 recoding chart are available on the Taylor catalog webpage of this website.
JPEG images of the Taylor 2354 recoding chart are available on the Taylor catalog webpage of this website.
A copy of the original Taylor manual for the 2354 can be downloaded below (2 pages):
An additional instruction sheet for the 2354 may be downloaded below (2 pages):
